You're usually not researching sewer lining repair on a good day. It's often after a basement drain backs up, the toilet starts gurgling when the washing machine runs, or a camera inspection shows an aging clay or cast iron line under a driveway you don't want torn apart.
In Greater Vancouver, that stress gets amplified by tight lots, mature landscaping, laneway access issues, strata approvals, and city requirements that can slow a job if the planning is sloppy. The good news is that many sewer problems no longer require a full trench across your yard. For the right pipe, trenchless lining can restore function with far less disruption than traditional excavation.
Table of Contents
- What Is Modern Sewer Lining Repair
- A Look Inside the Trenchless Repair Process
- Sewer Lining vs Traditional Excavation
- Costs Timelines and Lifespan in Greater Vancouver
- Signs Your Sewer Line Needs Repair
- Navigating Local Regulations and Approvals
- Your Trusted Partner for Trenchless Sewer Repair

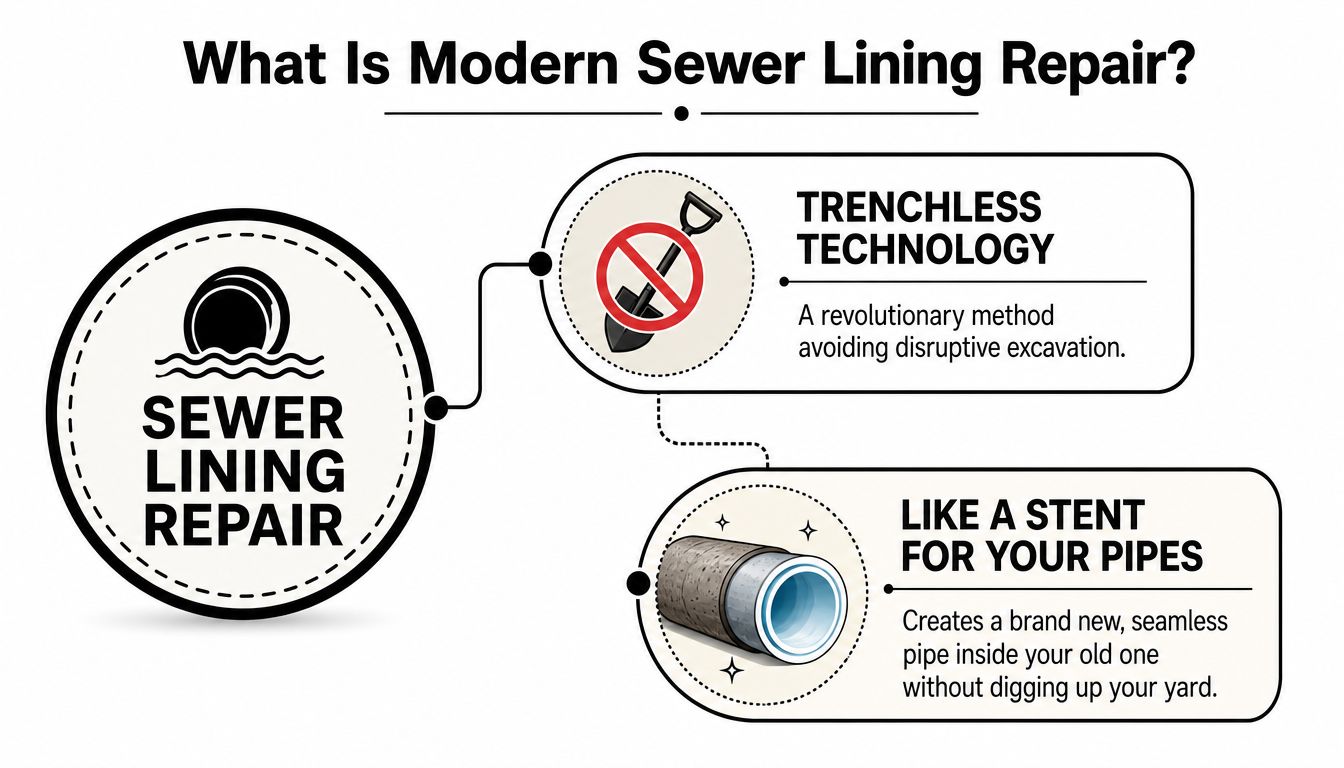

What Is Modern Sewer Lining Repair
Modern sewer lining repair is a trenchless method of fixing a damaged sewer line from the inside. Instead of excavating the full length of pipe, a plumber restores the line internally, usually through an existing access point or a small excavation. For many homeowners, the easiest way to understand it is this: it's like placing a stent inside a weakened artery, except the result becomes a new pipe wall inside the old sewer.
With Cured-in-Place Pipe, often called CIPP, the crew installs a flexible liner saturated with epoxy resin into the existing pipe. Once that liner is in position and cured, it hardens into a smooth, jointless interior pipe. The old pipe becomes the host. The new liner does the work.
Why homeowners choose lining
Traditional dig-and-replace still has a place. If a pipe is badly collapsed, severely offset, or missing sections, excavation may be the right call. But many sewer laterals in Vancouver, Richmond, and Surrey aren't in that condition. They're cracked, root-invaded, rough inside, or leaking at joints. Those are the situations where lining often makes sense.
A good overview of the trenchless approach is outlined in this guide to trenchless sewer line repairs.
Common situations where sewer lining repair works well include:
- Older clay lines with root entry at joints that still hold their general shape.
- Cast iron sewers with interior scaling where flow has narrowed but the pipe path is still serviceable.
- Pipes under hardscape such as stone walkways, garages, patios, and finished driveways.
- Urban lots with poor access where a machine crew and open trench would create far more disruption.
Practical rule: Sewer lining repair is a rehabilitation method, not a magic trick. If the host pipe can be cleaned, inspected, and structurally used as a form, lining is often worth considering.
What it changes and what it doesn't
Lining changes the inside surface of the pipe. It creates an unbroken channel that removes joints where roots typically enter. It also avoids the mess of opening the entire yard.
What it doesn't do is correct every underground problem. A severe belly, a full collapse, or a major misalignment can still push the job toward spot excavation, pipe bursting, or full replacement. That's why every proper lining project starts with inspection, not guesswork.

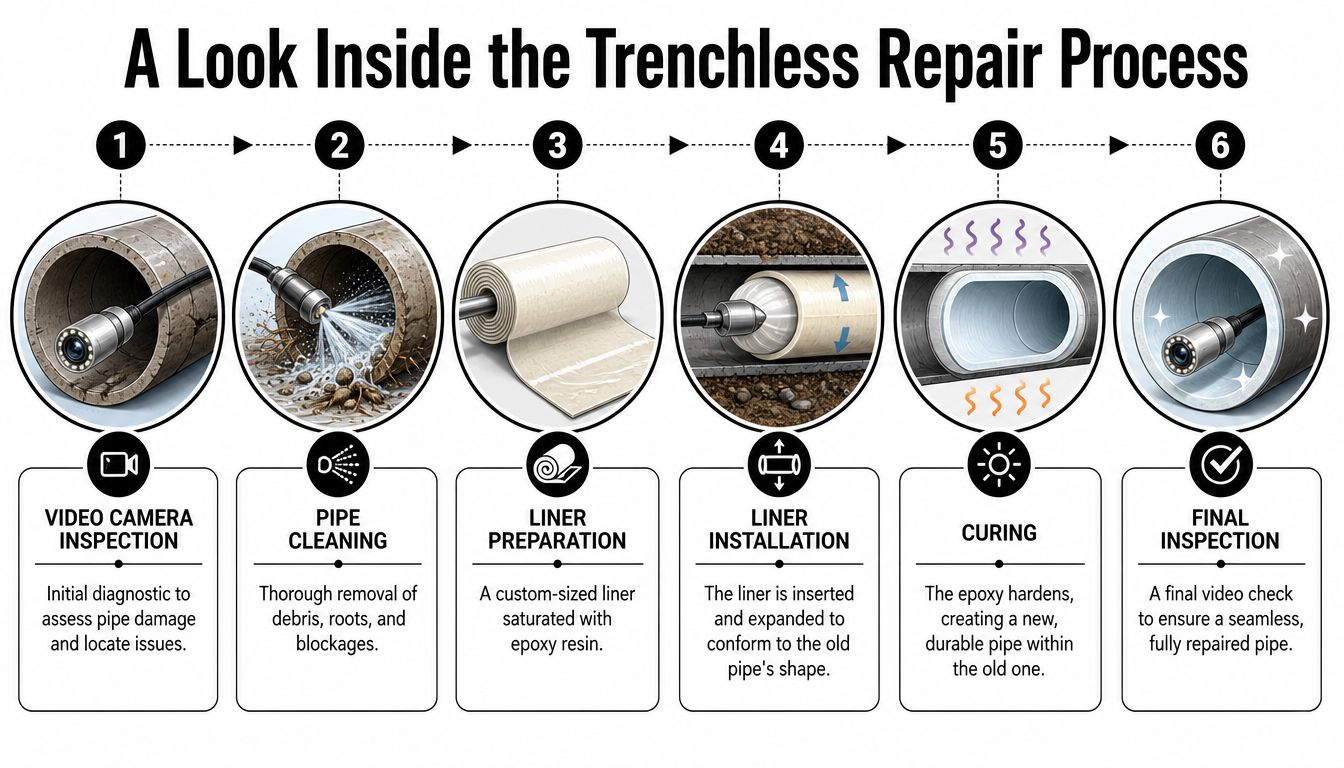

A Look Inside the Trenchless Repair Process
A trenchless sewer lining job should feel controlled, not mysterious. When it's done properly, there's a clear sequence from diagnosis to final sign-off.
Early in the process, the inspection footage matters more than sales talk. A camera shows whether the pipe is a good candidate for lining, where roots or cracks sit, and whether there are sections that need a different repair method.
Step one and two
The first stage is a video inspection. A small camera travels through the sewer line to identify the material, the path, the depth changes, and the damage. If you want a closer look at how that part works, this drain camera inspection service overview explains the role of camera diagnostics in drainage work.
Then comes cleaning. This is the part homeowners often underestimate. Roots, grease, scale, loose debris, and mineral buildup have to be removed so the liner can sit tightly against the interior wall. Crews typically use high-pressure jetting and, where needed, mechanical descaling tools.
A liner only performs as well as the preparation underneath it.
Step three to five
After the pipe is cleaned and measured, the crew prepares the liner. The liner is cut to the right length and saturated with epoxy resin. It remains flexible at this stage.
Installation usually happens by inversion or pull-in method. The liner is inserted through an access point and pressed against the old pipe wall. Once it's fully positioned, the curing phase begins. Depending on the system, curing may use hot water, steam, or UV light. That hardening process is what turns the soft liner into a structural inner pipe.
Here's a useful visual demonstration of trenchless work in action:
The last field step is reopening any branch connections that need to remain active, followed by a final camera inspection.
Final verification
A proper job ends with proof. The plumber runs the camera again through the lined pipe to confirm the interior is smooth and continuous, the transitions are clean, and the repair matches the planned section.
A practical example from local work: if a Richmond home has a sewer running from the basement out under a side yard and into a paved parking area, the crew can often access the line from a cleanout or a limited opening rather than trenching the whole route. The homeowner still deals with noise, equipment, and a short drainage shutdown during curing, but not a torn-up driveway and weeks of restoration.
Sewer Lining vs Traditional Excavation
Homeowners usually compare these two options only after a camera inspection confirms the sewer line needs more than snaking. The actual decision isn't just “Which pipe repair costs less today?” It's “Which approach solves the problem with the least collateral damage to the property?”
On a bare lot with easy machine access, traditional excavation can still be straightforward. On a Vancouver character home lot, a Surrey property with tight side access, or a Richmond house with custom paving, the answer often changes fast.
Trenchless Lining vs. Traditional Excavation at a Glance
| Factor | Trenchless Sewer Lining | Traditional Excavation |
|---|---|---|
| Property disruption | Minimal surface disturbance, usually through existing access or small openings | Major disturbance along the pipe path |
| Effect on driveways and landscaping | Often preserves hardscape and planting | Often requires removal and later restoration |
| Access needs | Works well where machine access is limited | Easier when equipment can reach the full line |
| Repair method | New seamless inner pipe inside existing line | Old pipe removed and replaced |
| Best use case | Cracks, root intrusion, joint failures, corrosion in a serviceable host pipe | Collapse, severe offset, missing sections, major grade problems |
| Household disruption | Usually shorter and more contained | Often more disruptive and messier |
| Follow-up restoration | Limited in many cases | Commonly includes surface rebuilding |
A practical Richmond example
Take a house with a sewer lateral running under a custom stone driveway and designed front walk. If the line has root intrusion and joint failure but still holds shape, sewer lining repair often protects the expensive parts of the property. The plumbing work happens underground. The driveway stays in place.
With traditional excavation on that same property, the pipe replacement may be only part of the bill and only part of the inconvenience. The trenching can cut through stone, base material, edging, lawn, irrigation, and any feature built over the line. Even when the pipe work itself is sound, the restoration is where projects become frustrating.
Where excavation still wins
Lining isn't the right answer for every sewer. A pipe that has collapsed flat can't accept a liner. A serious belly may still hold water after lining. A sharp offset can prevent proper installation.
That's where experience matters. Honest recommendations often sound less dramatic than marketing. Sometimes the right solution is a hybrid job with one localized excavation and the rest lined. That approach can preserve much of the yard while still correcting the section that lining can't fix safely.
If someone recommends lining without showing you the inspection footage, slow the conversation down.

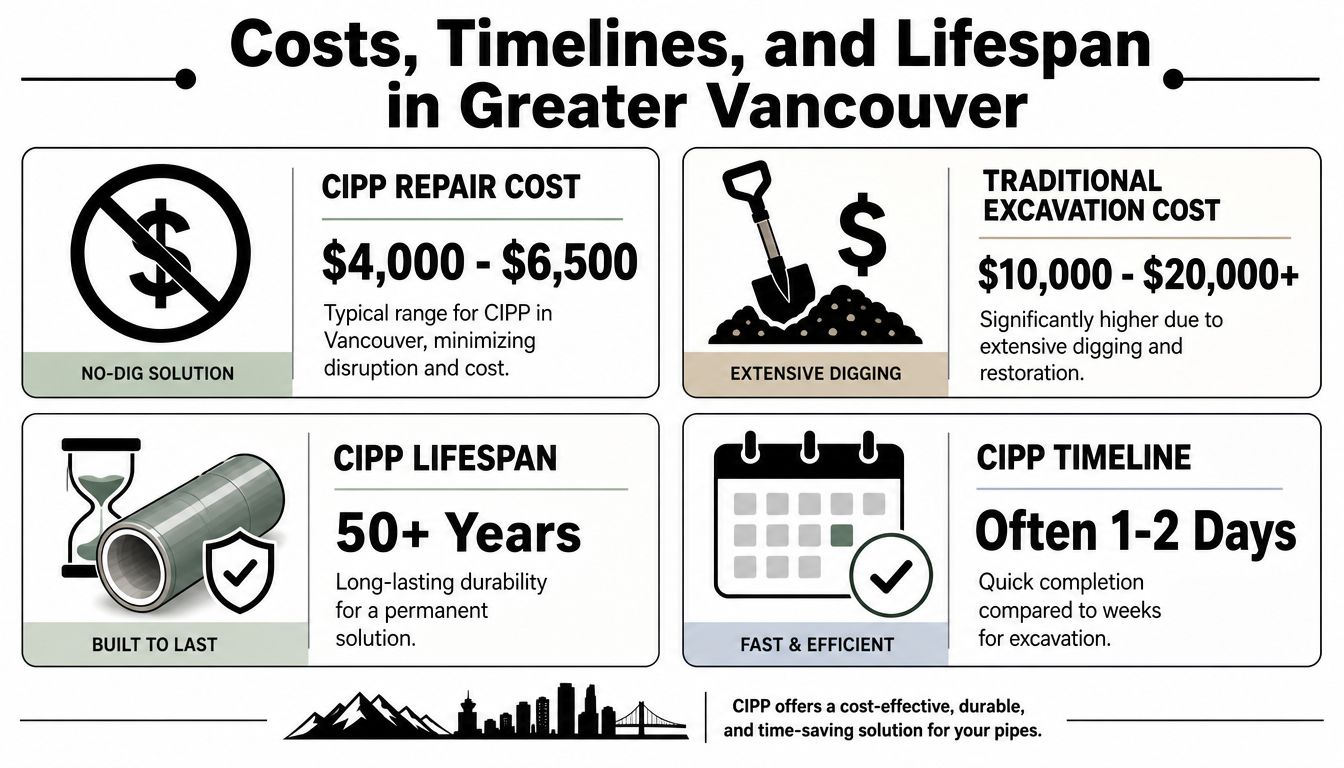

Costs Timelines and Lifespan in Greater Vancouver
A Vancouver homeowner with a sewer running under a front walk, a narrow side yard, or a finished basement usually asks the same two questions first. How much will this cost, and how long will my house be disrupted?
In Greater Vancouver, the answer depends less on the pipe itself and more on what sits above it, how access works on the lot, and what the municipality requires before the job can be closed out. For a standard residential liner, trenchless pipe lining in Vancouver, Surrey, and Richmond typically costs between $4,000 and $6,500 for a 25-to-30-foot section, while traditional open-cut replacement with excavation and surface restoration ranges from $5,000 to over $15,000 for pipe work alone and can rise to $40,000 when driveway, lawn, and walkway restoration are added, according to Greater Vancouver trenchless versus traditional sewer repair cost details.
What drives the price in this region
Pipe length matters, but it is rarely the whole story.
Older Vancouver lots often have mature trees, tight access between houses, and buried services packed into a small footprint. Richmond properties can bring high groundwater and flat grading, which affects setup and cleanup. Surrey jobs vary more widely because some homes have easier machine access, while others have long laterals crossing large front yards or shared areas.
Price usually changes based on a few practical factors:
- Length and diameter of the sewer line, which affects liner material and installation time
- Existing access, including whether the crew can use a cleanout or needs to create one
- Condition of the host pipe, since roots, scale, offsets, and debris can add cleaning and prep work
- Surface restoration risk, especially where the line runs under concrete, pavers, retaining walls, landscaping, or driveways
- Municipal inspection requirements, which can affect scheduling and closeout depending on the city
If you are budgeting across more than one issue, this plumbing repair cost guide for common home plumbing work gives useful context for how sewer repair compares with other repair categories.
Typical timelines
For many residential lining jobs, the active work is often finished in one to three days. The shorter end usually applies when the line is accessible, cleaning goes smoothly, and the pipe is still a good candidate after camera inspection. Jobs can take longer if the crew has to clear heavy roots, reinstate multiple branch connections, or wait on inspection timing.
On Greater Vancouver properties, scheduling can matter as much as the install itself. Street parking restrictions, shared driveways, strata coordination, and municipal inspection windows can add a day even when the liner installation is straightforward. Homeowners should ask for two timelines. One for the on-site plumbing work, and one for the full project from inspection to final sign-off.
Lifespan and value over time
A properly installed CIPP liner is intended as a long-term repair, not a short patch. In practice, homeowners often choose it because it solves the sewer problem without taking apart expensive surfaces, but the longer service life matters too. Many older homes in Vancouver, Richmond, and Surrey still have aging clay tile or other legacy materials that are more vulnerable to roots, joint separation, and recurring maintenance.
That long view matters on urban lots where future access will not get easier or cheaper. If a line is a good candidate for lining, the value is not only the lower disruption today. It is also the chance to avoid another major sewer project for decades.
Signs Your Sewer Line Needs Repair
Most homeowners don't see the sewer problem directly. They hear it, smell it, or notice that more than one fixture starts acting strangely at the same time.
The pattern matters. One slow sink can be a local blockage. A toilet gurgling when another drain runs, plus a floor drain smell, plus repeated backups usually points farther down the system.
What homeowners notice first
- Recurring backups in multiple fixtures. If the lowest drain in the home backs up first, the problem may be in the main sewer line rather than an individual branch.
- Toilet gurgling. Air gets displaced when water struggles past a blockage, narrowed section, or damaged pipe.
- Persistent foul odours. A sewer smell in the basement, crawl space, or yard can mean wastewater isn't moving properly or is escaping through a break.
- Slow drains across the house. When the tub, kitchen sink, and toilet all seem sluggish, the issue is often bigger than one trap or fixture.
- Unusual yard changes. Soft, sunken, wet, or overly lush patches above the sewer route can suggest leakage below.
What those signs often mean
A house in Vancouver might show the problem as a basement shower backing up first during laundry day. In Richmond, the earliest clue might be an outdoor cleanout overflowing in wet weather. In Surrey, a homeowner may only notice that root problems keep returning even after the line has been cleared before.
None of those symptoms confirm lining on their own. They do confirm that the sewer deserves a camera inspection before the next backup turns into interior damage.
Sewer problems rarely improve on their own. They usually repeat, then worsen, then become urgent at the least convenient time.
When to stop trying temporary fixes
Drain cleaners, repeated snaking, and occasional root cutting can buy time. They don't settle the bigger question, which is whether the pipe wall itself is failing. If the same issue keeps coming back, the important shift is from “How do I clear it again?” to “What condition is the sewer in?”
That's the point where a proper diagnosis saves money and avoids unnecessary work.
Navigating Local Regulations and Approvals
Greater Vancouver sewer work isn't only about what's technically possible underground. It also has to be acceptable to the municipality, consistent with local requirements, and documented correctly if the repair ties into a city connection or affects shared property.
That matters more in dense neighbourhoods than many homeowners expect. A small trenchless job can still require permit coordination, inspection scheduling, and material compliance. On strata properties, it may also require approval on the building side before municipal steps even begin.
Why local compliance matters
Municipalities generally favour methods that reduce disruption to roads, sidewalks, boulevards, and neighbouring properties. That makes trenchless repairs attractive in urban settings. But acceptance of a specific method still depends on the pipe location, the connection details, and how the work is specified.
Homeowners shouldn't be left sorting that out alone. A qualified contractor should confirm what applies to the lateral, who owns which section, whether permits are needed, and how the finished repair will be documented.
What a proper contractor accounts for
- Permit requirements tied to the repair location and the city connection.
- Material acceptance so the liner system meets the relevant standard for the job.
- Inspection coordination when the municipality requires verification before closeout.
- Strata or multi-unit logistics where access, shutdowns, and records need more formal handling.
Structural sewer lining applications, when installed to manufacturer specifications and regional environmental standards, have an engineered service life of 50 to 100 years, and trenchless pipe liners specifically conform to a 50-year engineered lifespan benchmark, according to this sewer lining specification document from Unitywater.
That kind of standard matters because compliance isn't paperwork for its own sake. It's part of what separates a proper structural rehabilitation from a shortcut that creates problems at resale, during claims, or at the next inspection.
Your Trusted Partner for Trenchless Sewer Repair
A sewer problem in Greater Vancouver rarely shows up at a convenient time. It starts with a slow basement drain in Vancouver, a sewer smell near the side yard in Richmond, or a backup that keeps returning in an older Surrey home with clay or cast iron piping. By the time a homeowner calls, the main concern is usually simple. Can this be fixed without tearing up the yard, driveway, or patio.
That answer depends on the condition of the pipe and on the contractor evaluating it. Good trenchless work starts with a proper camera inspection, a clean line, and an honest recommendation. If the pipe can be lined, the contractor should explain why. If it cannot, they should say that plainly and show the footage.
For homeowners, the practical standard is straightforward. Choose a company that can inspect the line, clean it with high-pressure jetting, confirm whether lining is structurally appropriate, and provide post-installation camera footage. Encano Plumbing & Drainage Ltd. is one local option that provides trenchless sewer line repair as part of its drainage services, along with camera inspection and jetting support for diagnosis and preparation.
What a careful recommendation looks like
In dense neighbourhoods across Vancouver, Richmond, and Surrey, the right repair method often comes down to access and risk above the pipe. A liner can avoid disturbing landscaping, hardscaping, garages, lane access, and buried utilities. That matters on small city lots where excavation can create a much bigger project than the pipe repair itself.
A careful contractor should be able to answer questions like these without dodging the trade-offs:
- Will the liner reduce the pipe diameter? Yes, slightly. In many cases, the smoother interior still improves flow compared with a pipe narrowed by roots, scale, or rough joints.
- Is the epoxy safe after curing? The liner is designed to cure into a hardened finished pipe inside the existing line.
- Will you need to leave the house? Usually no. You may need to avoid using drains for a scheduled period while the work is underway.
- Can every sewer be lined? No. A collapsed section, a severe offset, or a pipe with grade problems may need spot excavation or full replacement instead.
That last point is the one experienced plumbers do not gloss over. Trenchless repair is excellent in the right pipe. It is not a cure-all.
Why the contractor choice matters
The long-term value of sewer lining comes from installation quality, not just the method itself. In older Greater Vancouver neighbourhoods, I have seen two homes on the same block need very different solutions because one line had root intrusion at the joints and the other had a section already dropped under the footing. Both started with the same symptom. Only one was a good lining candidate.
For homeowners, that means the quote should match the actual pipe condition, not a sales script. For strata councils and property managers, it means getting clear records of the inspection, repair method, and final verification, especially where access, shared services, and municipal sign-off can affect the job file later.
Ask to see the before-and-after camera footage. It is one of the clearest ways to confirm what was repaired and how well the work was finished.
If your drains are backing up, sewage odours are showing up outside, or a recent inspection found defects in the building sewer, the next step is a proper assessment. You want camera footage, a written scope, and a contractor who understands how trenchless repair fits local property layouts and municipal requirements.
If you need a camera inspection, trenchless repair assessment, or a clear quote for sewer work in Greater Vancouver, contact Encano Plumbing & Drainage Ltd.. They serve Vancouver, Richmond, Surrey, and nearby communities with drainage diagnostics, trenchless sewer solutions, and emergency plumbing support, so you can find out what's happening underground before a manageable problem becomes a major excavation.
